Author Topic: Lifting My Aztek  (Read 26845 times)
0 Members and 1 Guest are viewing this topic.
The Red Baron
100 Club Members
****
Offline Offline

Posts: 865


2001 Pontiac Aztek (The Red Baron)


« Reply #15 on: December 02, 2009, 05:22:25 PM »

is there a limit of how low to go? and what other modifications would be needed? how much stiffer would it be? would that be bad for the car?
« Last Edit: December 02, 2009, 07:49:01 PM by The Red Baron » Logged

T@ZTek
Intermediate User
**
Offline Offline

Posts: 39



« Reply #16 on: December 02, 2009, 09:28:04 PM »

I wouldn't cut more than one coil, any more and you will be getting close to the bump stops in normal driving. Hitting bottom in normal driving will cause severe damage in a short time. My Fiero has one coil cut from the front without shortening the bump stops, it just hammers me sometimes. The rear has been converted to coil-overs so it's completely height adustable. The car is only lowered 1 1/2 inches and looks completely different, a little lowering goes a long way. A difference of 1" in ride height may reduce suspension travel 2" or more, consider the total spring height. Plus the front camber will be way off and not adjustable any further, rear too in AWD Teks but not so bad. You're messing with a well engineered suspension system, any changes might have negative consequences.

I agree with Guyver280z, go slow, you can't put material back.
Logged

T@ZTek
'05 Fusion Orange Metallic
Towing '04 T@B 16U teardrop
The Red Baron
100 Club Members
****
Offline Offline

Posts: 865


2001 Pontiac Aztek (The Red Baron)


« Reply #17 on: December 02, 2009, 09:57:33 PM »

so not more than a coil? is that even worth the time to do? And I want it lowered a little bit more in the back. I HATE how much wheel well there is and how the Aztek is pointed face down yanno?
Logged

travisl_2727
100 Club Members
****
Offline Offline

Posts: 113


« Reply #18 on: December 02, 2009, 11:37:00 PM »

with the front of our azteks you can only get a wheel thats 1.5" bigger in diameter to fit... as with the lift, my back has been an inch higher for a while now, its the front thats complicated.. i was able to to put a 5/8" maximum spacer in between the engine cradle and the body with no problems... its just figuring out a spacer for the top of the stuts thats going to suck... and as of late i've been way to busy at work to figure something out... but i'll keep you posted
Logged

2002 Pontiac Aztek AWD
97drexelgrad
2006, 2007, 2008 International Aztek Rally Organizer, Paid Member,
Global Moderator
Lifetime Member
*****
Offline Offline

Posts: 6233



« Reply #19 on: December 03, 2009, 11:35:04 AM »



 There are places that sell shackles that compress the coil spring.  They look like big "U" bolts, and two go on each spring- one for each side of it.
« Last Edit: December 03, 2009, 11:37:51 AM by 97drexelgrad » Logged

Brian, NJ
Current owner of 2011 GMC Sierra SLE Crew Cab 4x4 6.2 l
403hp 420tq

Former owner of a 2003 Aztek Yellow, McCullough HID 6000k Headlights, Xentec HID 3000K Yellow Fog Lights, LEDS on all 4 Markers and Reverse Lights, Recon Strobe Lighting, Pioneer 10 speaker stereo, Infinity BassLink2 Sub, Precision Interface Electronics GM12-AUX, XM Roady XT, Helo Tease Rims with General Exclaim 245/40ZR20 tires, EBC Dimpled & Slotted Front Rotors, EBC Yellowstuff Pads, K&N Air Filter, Remote Start, kids car seat, Custom Dual Exhaust , Recon Big Rig Amber Running / Signal LED Lights, Side mirror LED Signal Lights, Line of Fire and Ice Brake Light, Monro Air Shocks in Rear, B&M Transmission Cooler, Garmin NUVI 350 GPS,  LEDs everywhere, Rear camera with night vision and 7 inch color monitor, GM Hood Deflector, Diehard Platinum Battery, American Flag / Bald Eagle on Rear Window, Fleetwood Camper,with LEDs and camera also, towed behind Tek ,
 2006, 2007, 2008 International Aztek Rally Organizer.  Email me @ 97drexelgrad@aztekfanclub.com
The Red Baron
100 Club Members
****
Offline Offline

Posts: 865


2001 Pontiac Aztek (The Red Baron)


« Reply #20 on: December 03, 2009, 02:15:27 PM »

do I leave the compressors on it when I put in on the car?
Logged

The Red Baron
100 Club Members
****
Offline Offline

Posts: 865


2001 Pontiac Aztek (The Red Baron)


« Reply #21 on: December 03, 2009, 02:18:17 PM »

and where do they sell them?
Logged

97drexelgrad
2006, 2007, 2008 International Aztek Rally Organizer, Paid Member,
Global Moderator
Lifetime Member
*****
Offline Offline

Posts: 6233



« Reply #22 on: December 03, 2009, 02:29:10 PM »

http://www.jcwhitney.com/jcwhitney/category.jcw?nval=1101011314&statenval=0&shopid=100001&pageid=10&leftnavcat=true
Logged

Brian, NJ
Current owner of 2011 GMC Sierra SLE Crew Cab 4x4 6.2 l
403hp 420tq

Former owner of a 2003 Aztek Yellow, McCullough HID 6000k Headlights, Xentec HID 3000K Yellow Fog Lights, LEDS on all 4 Markers and Reverse Lights, Recon Strobe Lighting, Pioneer 10 speaker stereo, Infinity BassLink2 Sub, Precision Interface Electronics GM12-AUX, XM Roady XT, Helo Tease Rims with General Exclaim 245/40ZR20 tires, EBC Dimpled & Slotted Front Rotors, EBC Yellowstuff Pads, K&N Air Filter, Remote Start, kids car seat, Custom Dual Exhaust , Recon Big Rig Amber Running / Signal LED Lights, Side mirror LED Signal Lights, Line of Fire and Ice Brake Light, Monro Air Shocks in Rear, B&M Transmission Cooler, Garmin NUVI 350 GPS,  LEDs everywhere, Rear camera with night vision and 7 inch color monitor, GM Hood Deflector, Diehard Platinum Battery, American Flag / Bald Eagle on Rear Window, Fleetwood Camper,with LEDs and camera also, towed behind Tek ,
 2006, 2007, 2008 International Aztek Rally Organizer.  Email me @ 97drexelgrad@aztekfanclub.com
The Red Baron
100 Club Members
****
Offline Offline

Posts: 865


2001 Pontiac Aztek (The Red Baron)


« Reply #23 on: December 03, 2009, 04:07:18 PM »

when the time comes, that 3" lowering kit is MINE. Will I need new shocks or anything?
« Last Edit: December 03, 2009, 07:14:39 PM by The Red Baron » Logged

Guyver280z
Advanced User
***
Offline Offline

Posts: 89


« Reply #24 on: December 14, 2009, 12:00:58 PM »

So, I got a set of 225/75R16 Michelins which appeared to be re threaded with a crazy Mud Terrain belt so I assume they turned out bigger than 225/75 because they hit the shock's coil plate (which I had to hammer to get out of the way....)

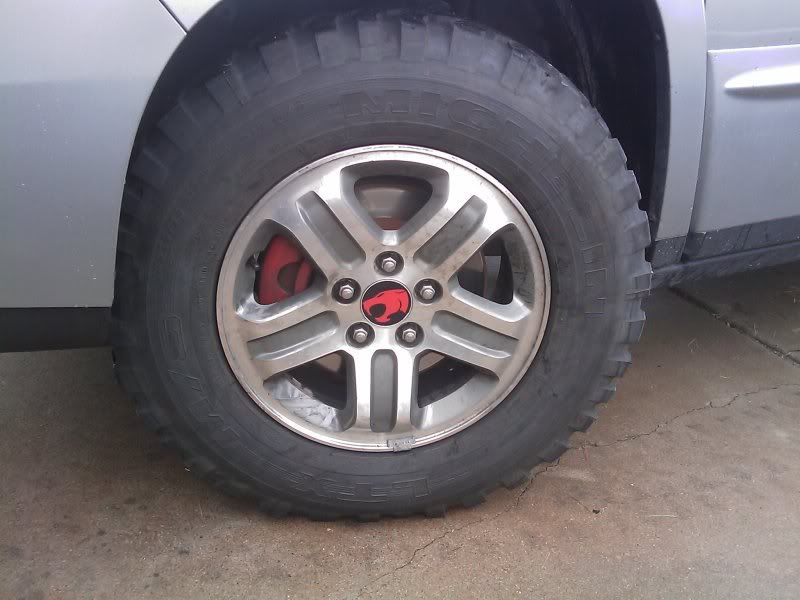

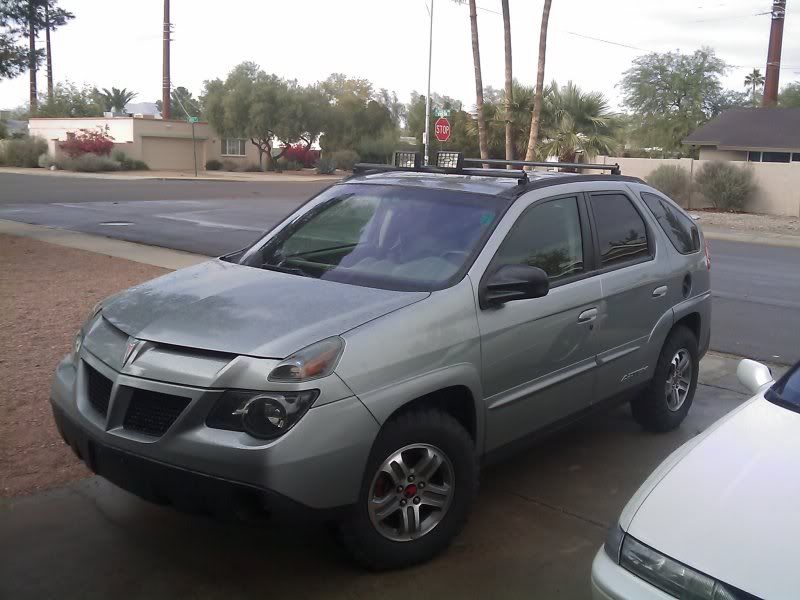

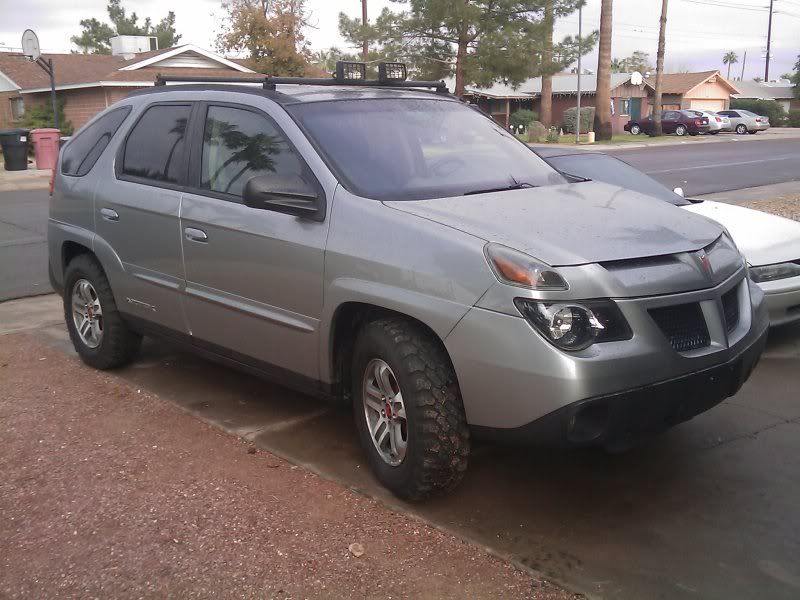

Here are some photos without any lift kit's yet:





Since my friends call my Tek the "Thundertank" (From the Thunder Cats) I decided to give em the pleasure and make some new center caps since I didn't wanted Honda logos on my wheels and at the same time I wanted a black and red center cap like the original Pontiac ones.





The front wheels rub EVERYWHERE while I turn and the tires seems to be pretty loud, but I'm used to loud tires. I'll trim the plastic where the tires are rubbing to avoid the noise and hopefully with the 1" spacers I'm planning to use on the entire suspension they'll clear better.

What you guys think?? SUV or Minivan??? :wacko:
Logged
Aztek-Knight
Assistant Administrator
Lifetime Member
*****
Offline Offline

Posts: 3110



WWW
« Reply #25 on: December 14, 2009, 12:47:07 PM »

THUNDER CATS... HOOOOOOO! Smiley Awesome stickers.

Not SUV, Not MiniVan... The one and only AZTEK! :wacko:
Logged


One Aztek Can Make A Difference.
Python
Paid Member
Lifetime Member
*****
Offline Offline

Posts: 1010


GMC Terrain


« Reply #26 on: December 14, 2009, 01:23:55 PM »

What you guys think?? SUV or Minivan??? :wacko:
Dude I LOVE your Aztek!  I am very impressed!
Logged

Formerly Owned: 2003 Pontiac Aztek FWD -- Sunroof, Bug Deflector, Tinted Windows, Power Seats, Premium Audio, 17" Alloys, Cargo Tray, All interior and most exterior halogen bulbs converted to LED, Silverstar Lowbeams and Highbeams, 3000k HID Fog Light Conversion, Tinted Plate Cover, Aztek Banner on Windshield, AFC Logo on Rear Hatch.
Guyver280z
Advanced User
***
Offline Offline

Posts: 89


« Reply #27 on: December 14, 2009, 02:07:52 PM »

 Grin

Thanks guys. You have pretty cool Teks too.

Logged
Anubis
Intermediate User
**
Offline Offline

Posts: 47


« Reply #28 on: December 14, 2009, 04:24:50 PM »

Guyver280z, it looks Awesome!!  I am looking to do 235/65r17 Michilen LXT A/T tires.  Your tires and these are the same overall diameter.  I saw how travisl_2727 lifted his rear with the spacers, but have not heard how he lifted the front end.  How are you going to lift your tek?

Anubis
Logged

2003 Grey AWD Aztek
Guyver280z
Advanced User
***
Offline Offline

Posts: 89


« Reply #29 on: December 14, 2009, 04:44:56 PM »

Guyver280z, it looks Awesome!!  I am looking to do 235/65r17 Michilen LXT A/T tires.  Your tires and these are the same overall diameter.  I saw how travisl_2727 lifted his rear with the spacers, but have not heard how he lifted the front end.  How are you going to lift your tek?

Anubis

The rear will be just the same, a 1" spacer.

For the front the entire suspension cradle comes with the transmission and engine mounted on top so the whole thing can be easily lowered 1" or maybe 2" to compensate the factory tilt to the front. For a 1" drop I think the stock upper engine mounts should be good enough, but for a 2" drop maybe a bit longer engine mount could be needed. Some hoses and pipes might need to be extended but I don't think 1" should be a big deal. The steering telescopic shaft might still have enough adjustment to reach the drop, in case it doesn't an extension for the steering shaft will be needed. Finally the same spacers used in the back can be used in the front with 1" longer bolts, and in order to keep the whole suspension working as factory specs a 1" spacer between the shock towers and the shocks should be needed too. I'll recommend an adjustable coil over shock but that can get a bit pricey.

Ill try to do some more research this weekend. Grin
